Opaque Envelope Wall Basis of Design (BOD)
Masonry Veneer with Rigid Insulation and CMU Back-up
IBC 2021 & IECC 2021
Featured Manufacturers
 |
|
Overview
Performance
| Rigid Continuous Insulation – IECC 2021 (Climate Zone 5, All Other Use) | ||||||
| Code (IECC 2021 + MA Base*) | Proposed Base | Proposed Optimized | ||||
| R-Value | U-Factor | R-Value | U-Factor | R-Value | U-Factor | |
| Roofs | ||||||
| Insulation Entirely Above Roof Deck | R-30ci | U-0.032 | R-30ci | U-0.032 | R-40ci | U-0.025 |
| Walls Above Grade | ||||||
| Mass Wall | R-11.4ci | U-0.090 | R-12ci | U-0.071 | R-16.8ci | U-0.053 |
| Slab-On-Grade Floors | ||||||
| Unheated Slabs | R-15ci | F-0.52 | R-15ci | F-0.52 | R-15ci | F-0.52 |
| Vertical Fenestration | ||||||
| Fixed | NA | U-0.36 | U-0.30* | NA | U-0.29 | NA | U-0.24 |
| Operable | NA | U-0.45 | U-0.32* | NA | U-0.30 | NA | U-0.30 |
| * MA specific requirement. | ||||||
Downloads
| Summary: | |
 | R-Value & U-Factor Analysis Embodied Carbon Analysis ICC Code Evaluation Report(s)* NFPA 285 Extension Report(s)* * Items available upon request
|
| Details: | |

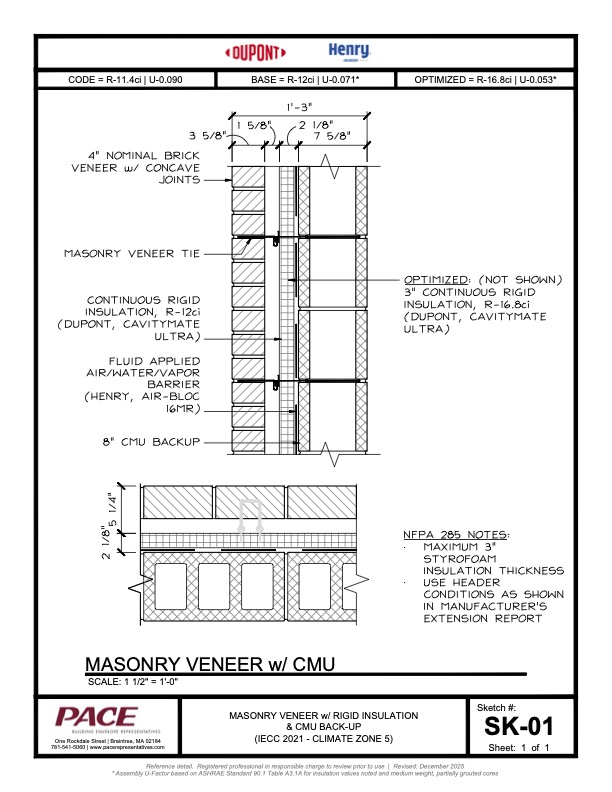

| SK-01 | Typical Wall Plan & Section SK-02 | Typical Wall to Foundation SK-03 | Typical Inside & Outside Corner SK-04 | Typical Floor to Floor SK-05 | Typical Wall to Roof SK-06 | Typical Wall to Window SK-07 | Typical Wall to Curtainwall |
| Short Form Specifications: | |
 | Section 071300 | Sheet Waterproofing Section 072100 | Thermal Insulation (Rigid ci) Section 072216 | Roof Insulation Section 084413 | Glazed Aluminum Curtain Walls Section 085113 | Aluminum Windows Short Form Specifications Courtesy of Kalin Associates |
| Product Data: | |

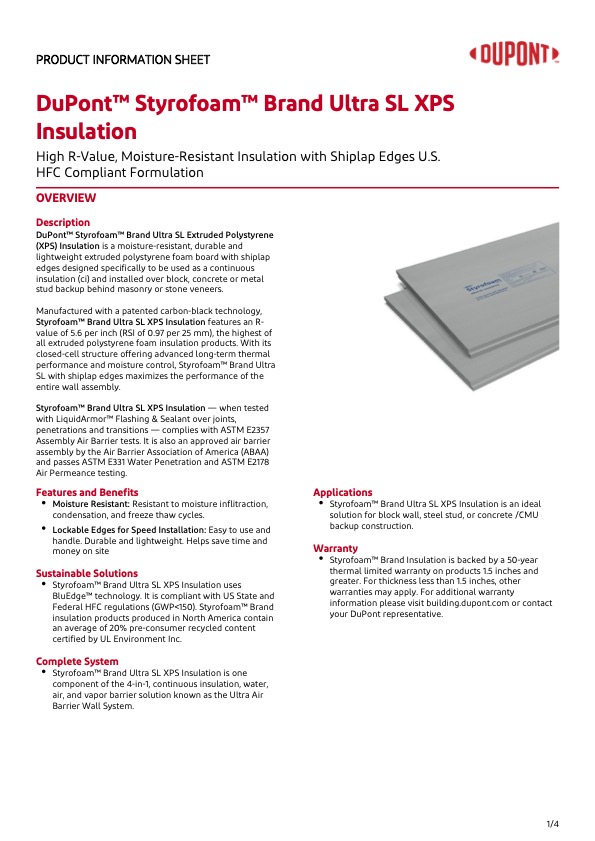

 | Section 071300 | Henry - MiraDri 860/861 & Blueskin WP200 Section 072100 | DuPont - Styrofoam Ultra & TClear - WallGuard Section 072216 | DuPont - Styrofoam XR Section 072700 | Henry - Air-Bloc 16MR & ELBEX - HS222 Section 084413 | Apogee Architectural Metals - EFCO 5600X Section 085113 | Apogee Architectural Metals - EFCO 325X |
