Overview
Performance
| Rigid Continuous Insulation – IECC 2021 (Climate Zone 5, All Other Use) | ||||||
| Code (IECC 2021 + MA Base*) | Proposed Base | Proposed Optimized | ||||
| R-Value | U-Factor | R-Value | U-Factor | R-Value | U-Factor | |
| Roofs | ||||||
| Insulation Entirely Above Roof Deck | R-30ci | U-0.032 | R-30ci | U-0.032 | R-40ci | U-0.025 |
| Walls Above Grade | ||||||

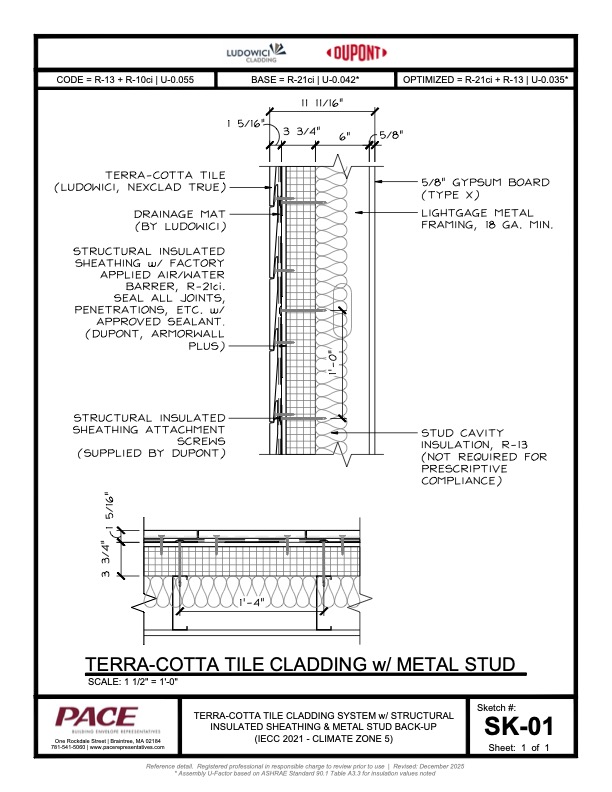

| Metal Framed | R-13+ R-10ci | U-0.055 | R-21ci | U-0.042 | R-13+ R-21ci | U-0.035 |
| Slab-On-Grade Floors | ||||||
| Unheated Slabs | R-15ci | F-0.52 | R-15ci | F-0.52 | R-15ci | F-0.52 |
| Vertical Fenestration | ||||||
| Fixed | NA | U-0.36 | U-0.30* | NA | U-0.29 | NA | U-0.24 |
| Operable | NA | U-0.45 | U-0.32* | NA | U-0.30 | NA | U-0.30 |
| * MA specific requirement. | ||||||
Downloads
| Summary: | |
 | Embodied Carbon Analysis Clear Field Wall Thermal Modeling* ICC Code Evaluation Report(s)* NFPA 285 Extension Report(s)* * Items available upon request
|
| Details: | |
| |
| Short Form Specifications: | |
 | Section 061613 | Structural Insulated Sheathing Section 071300 | Sheet Waterproofing Section 072100 | Thermal Insulation (SIS ci) Section 072216 | Roof Insulation Section 074229 | Terracotta Wall Tiles Section 084413 | Glazed Aluminum Curtain Walls Section 085113 | Aluminum Windows Short Form Specifications Courtesy of Kalin Associates |
| Product Data: | |

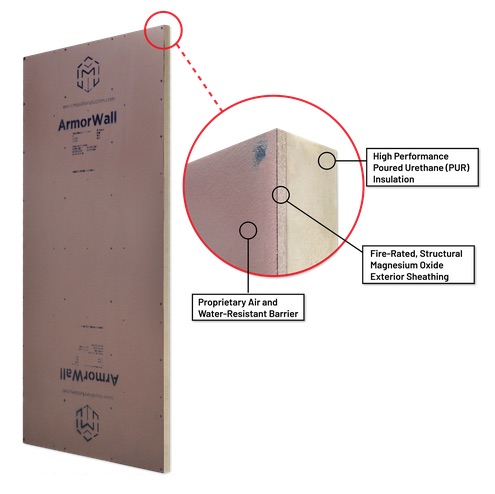

 | Section 061613 | DuPont - ArmorWall System Section 071300 | Henry - MiraDri 860/861 & Blueskin WP200 Section 072100 | DuPont - Styrofoam & TClear - WallGuard Section 072216 | DuPont - Styrofoam XR Section 074229 | Ludowici - NeXclad Section 084413 | Apogee Architectural Metals - EFCO 5600X Section 085113 | Apogee Architectural Metals - EFCO 325X |
